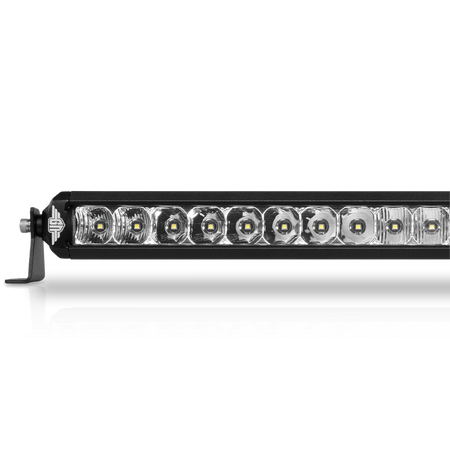

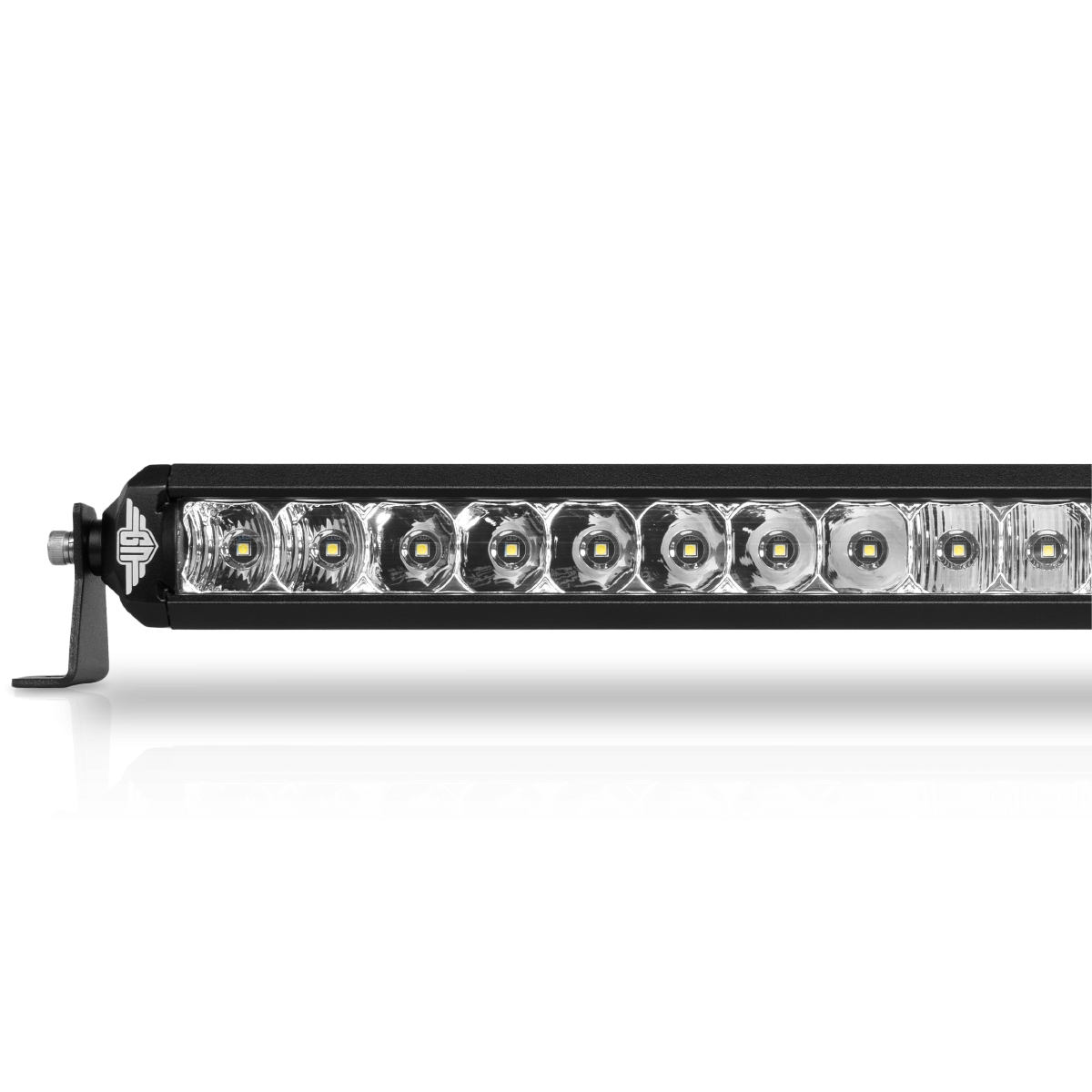

Face the challenges of the dark with the Ultimate9 LED Light Bars.
Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore ® PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan ® Polycarbonate lenses, their rugged construction will last for years to come.
WATER & DUST PROTECTED
To protect internal circuitry from damage that arises from moisture & dust ingress, Ultimate9 LED Light Bars are tested to ensure they meet the highest IP rating - IP68 & IP69K
VENTILATED
Although sealed, LED Bars also need to breathe to relieve pressure build-up as the light heats & cools. Utilising a Gore ® PolyVent ensures internal pressure can equalise to prevent seal failure & moister/dust ingress - eliminating lens condensation & fogging.
COATING
While aluminium anodised surface coatings are corrosion-resistant over time, they fade from UV damage. DuPont ® Polymer powder coats instead provide much higher UV & corrosion resistance and remain their chosen colour longer.
LENS
Lexan ®, used for its strength in well-known products such as astronaut helmet visors, bulletproof glass, fighter jet canopies, ballistic eyewear, replaces glass and plastic lenses. UV, scratch and impact-resistant, Lexan ®s ability to mould into complex shapes help form hardened, optically clear lenses for superior performance.
OPTICS
For improved visibility in changing conditions and environments, a combination of flood and spot reflector optic patterns offer both wide-angled and long spread illumination.
TESTED & CERTIFIED
IP, vibration, UV, corrosions, RoHS, temperature exposure, impact, and EMC tests ensure Ultimate9 LED Light Bars exceed operational conditions and electrical standards for longevity & legal fitment.
Kit Includes:
• LED Light Bar
• Side-Mount Brackets & Hardware
*Harnesses available separately
- Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for term long submersion and total dust ingress.
IP69K for stream jet cleaning. - Ventilation: Gore ® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont ® coating.
- Lens: GE Lexan ® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: Flood & Spot reflector beam combination with 20 °(Flood) & 8 °(Spot) spreads.
- Technology: Grade A Osram 5W LED chips & sealed DT connectors.
